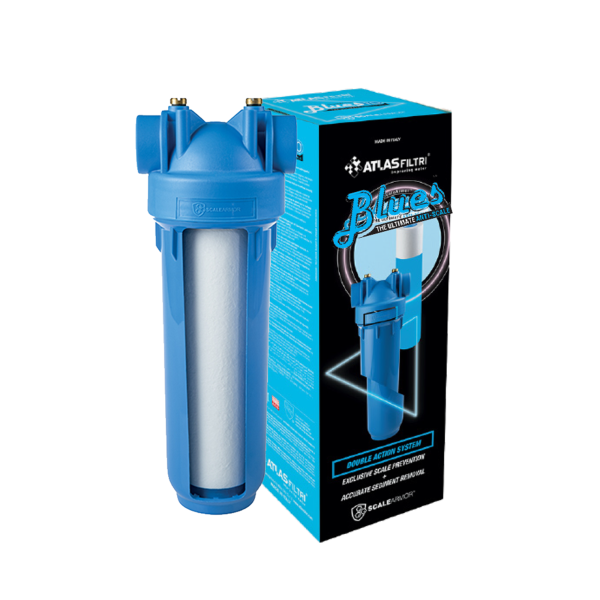

Atlas Filtri ScaleArmor BLUES – Anti-scale System with a Sediment Filter

DESCRIPTION:

ScaleArmor™ BLUES is a small compact system that is great for treating alternative sources of potable water, such as well, rain, and borehole water. If your water is hard and may also contain dirt, debris, dust, sand and silt then the ScaleArmor BLUES from Atlas Filtri may be able to help, with a filtration rate of 5 microns. The pre-sediment filter will remove sediments from the water, helping to prevent clogged appliances and pipes, helping to prevent expensive repairs. After the filter the water flows into the BLUES system were it passes through a replaceable media solution that prevents the formation of limescale by treating the water.

Please note that this doesn’t soften the water, but actively inhibits the growth of calcium and magnesium carbonate crystals that would form limescale within your home system.

ADVANTAGES:

Perfectly suited for homes with boilers, water heaters, washing machines and dishwashers. The anti-scale media prevents limescale accumulation on heat exchangers, heating elements and drainage systems, helping to enhance energy efficiency and reduces maintenance costs.

• Proven scale prevention
• Double action up to 6 months
• Sediment removal with high accuracy
• Works at higher temperatures
• Max 45°C – 113°F | Min 4°C – 39.2°F

ECO-FRIENDLY:
• Reduces energy consumption
• Recyclable materials

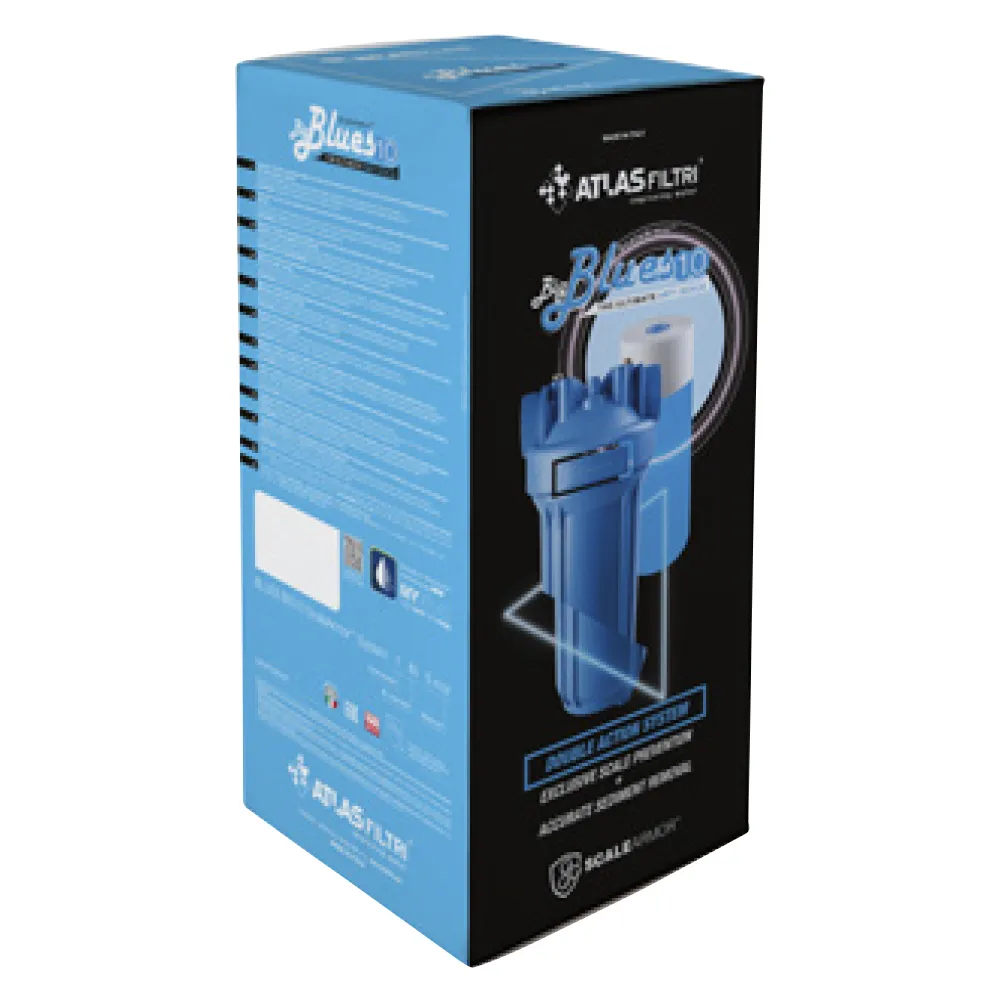

IN THE BOX:
• Housing
• Cartridge

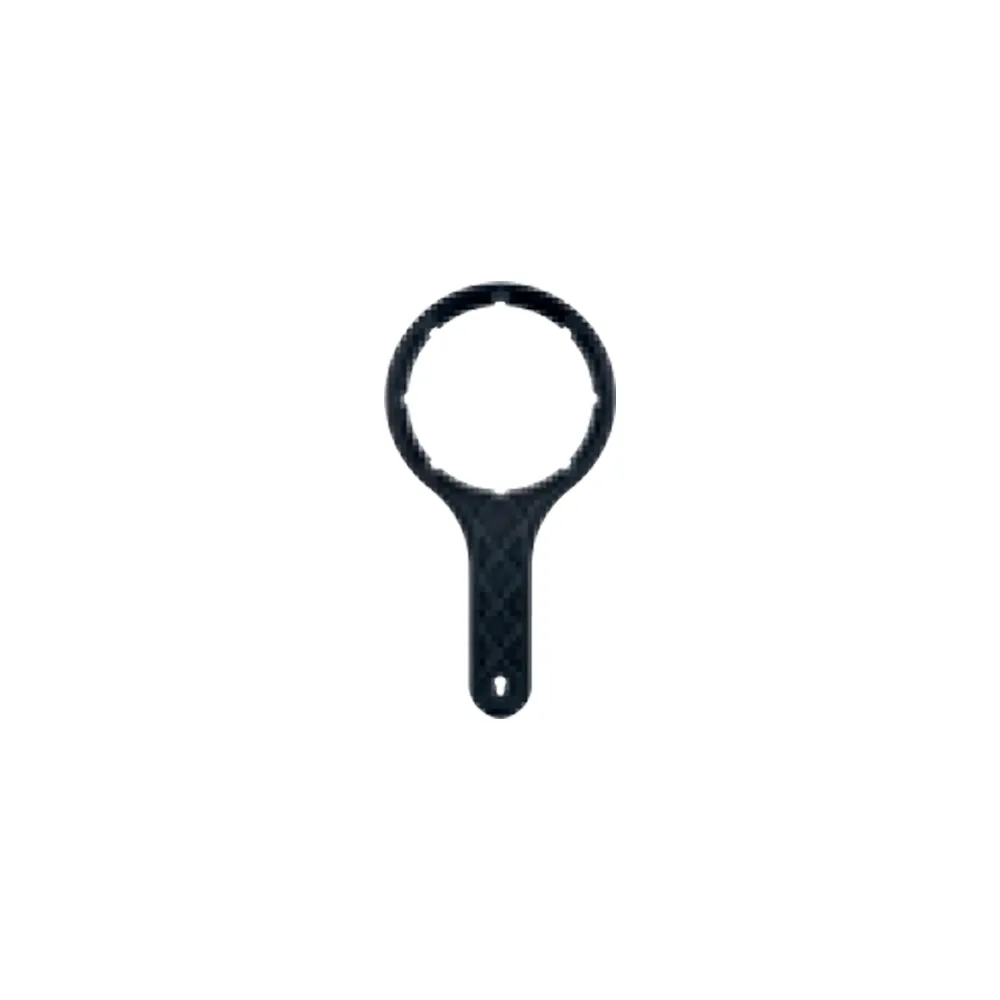

• Spanner

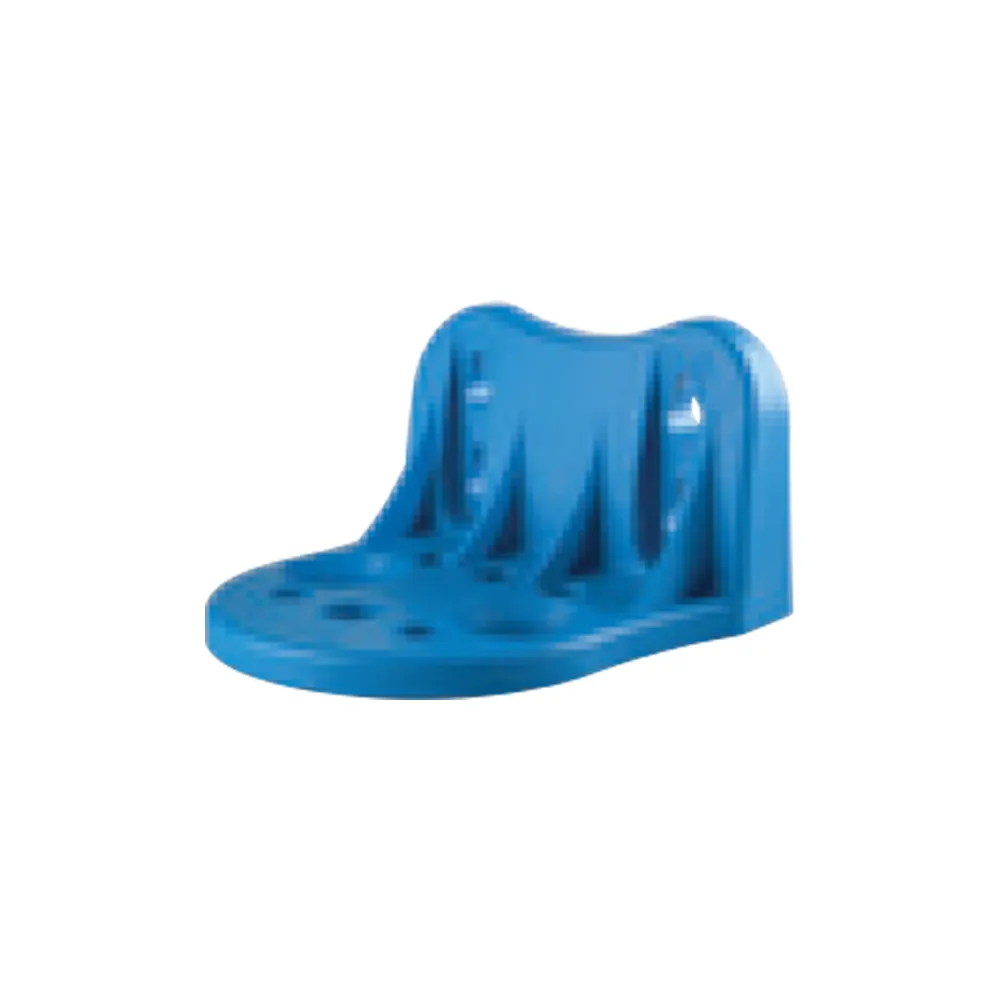

• Wall bracket
• O-ring
• Lubricant
• Instruction Manual

CONSTRUCTION:
• Non-toxic materials, suitable for drinking water
• Selected raw materials, suitable for drinking water
• Head: reinforced polypropylene
• Bowl: reinforced polypropylene (Big Blues) – PET (Blues).
• O-ring: EPDM (Blues); Silicone (BigBLUES)
• Breather-valve: body polypropylene (Big Blues)
• stainless steel (Blues), o-ring EPDM
• Drain plug (only Big Blues models): nylon
• Gauge plug: CW 511 L brass

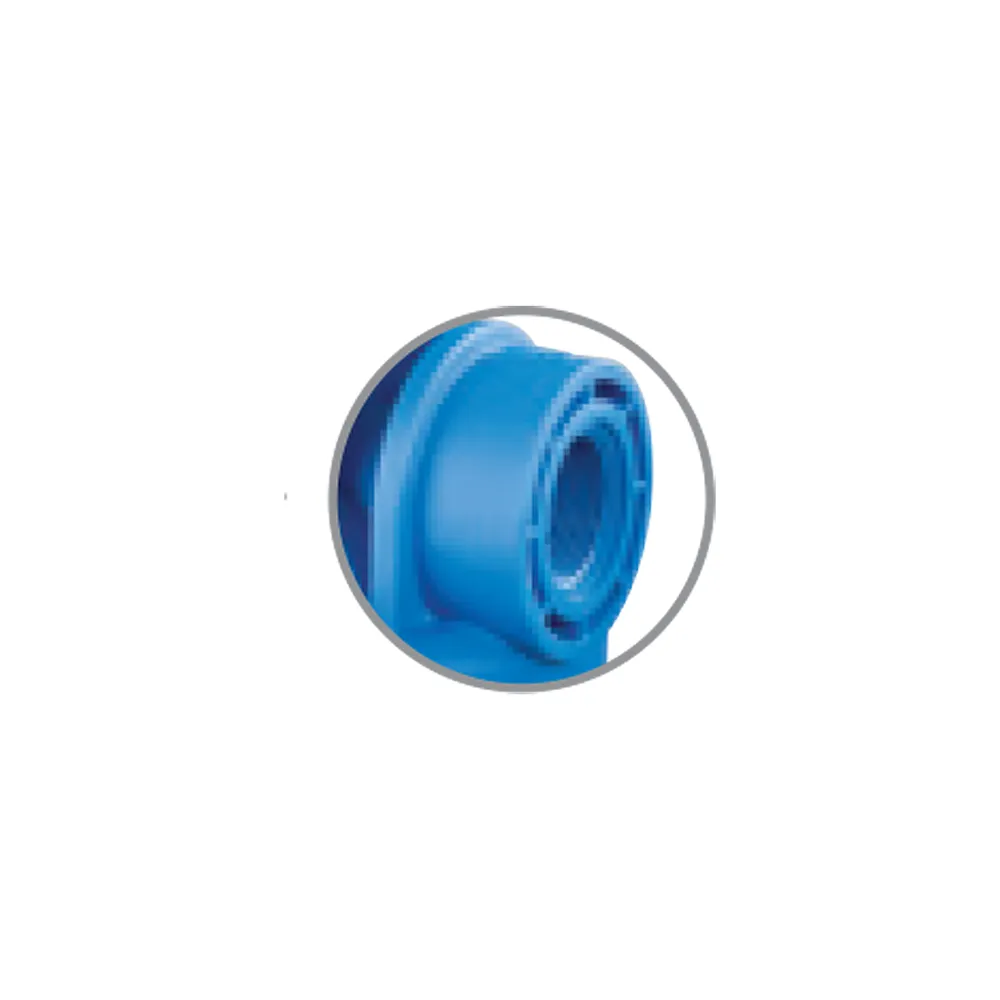

• Plastic BSPP Threads
• Filter Media: Polypropylene with ScaleArmor™ media

FLOW RATES:

• BLUES 10: 1300 L/h (5.7 GPM)
• BLUES 20: 1600 L/h (7 GPM)
• BigBLUES 10: 2500 L/h (11 GPM)
• BigBLUES 20: 4000 L/h (17.6 GPM)

APPLICATION LIMITS:
• “Big Blues” Max Working Pressure: 8.3 Bar (120 psi)
• “Blues” Max Working Pressure: 8 Bar (113 psi)
• Max Working Temperature: 45°C (113°F)
• Min Working Temperature: 4°C (39.2°F)
• Max Total Hardness: 50°F (500 oom CaCO³)
