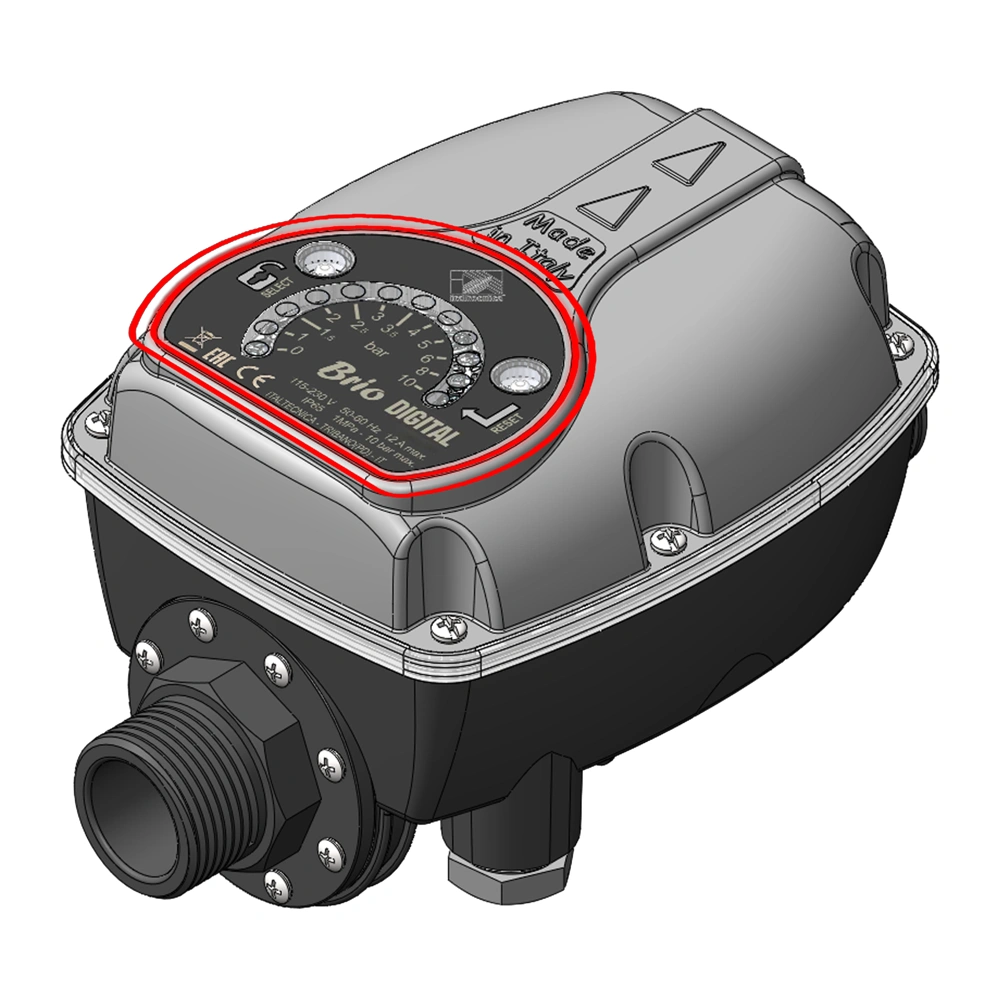

Italtecnica Brio Digital Electronic Pump Controller

Italtecnica BRIO DIGITAL Pump Controller 1–5 Bar

INSTALLATION & USE

The Italtecnica BRIO DIGITAL is an electronic pressure and flow controller designed for automatic electric pump operation. When system pressure drops as a tap is opened, the controller starts the pump. It then stops the pump when water flow ceases after the tap is closed.

Start pressure can be digitally adjusted between 1 and 5 bar, with system pressure displayed on an easy-to-read LED scale. The controller can be installed vertically or horizontally, providing flexibility across a range of pump and booster system configurations.

Built-in dry-run protection helps safeguard the pump when water is unavailable. Following a dry-run stop, the automatic reset function makes up to 10 restart attempts over 7 hours and 15 minutes. A 24-hour anti-seizure function and inspectable non-return valve provide additional protection and ease of maintenance.

The BRIO DIGITAL supports 115–230V AC supplies and pumps rated up to 12A, 2HP or 1500W. It has a 1″ male hydraulic connection, IP65 protection rating and a maximum allowable system pressure of 10 bar.

KEY FEATURES

– Automatically starts the electric pump when system pressure drops
– Stops the pump when water flow ends
– Digitally adjustable start pressure
– LED system-pressure display
– Protects the pump against dry running
– Automatic reset with up to 10 restart attempts over 7 hours and 15 minutes
– 24-hour anti-seizure protection
– Can be installed vertically or horizontally
– Inspectable non-return valve for easier maintenance
– Modern alternative to a traditional mechanical pressure-switch system
– Optional versions are available with electrical connection cables
– Optional plastic fittings are available for quicker installation

TECHNICAL DETAILS:

– Power supply 115–230V AC ±15%, 50/60Hz
– Maximum rated current 12A
– Maximum motor power 2HP / 1500W
– Adjustable start-pressure range 1–5 bar
– Factory start-pressure setting 1.5 bar
– Maximum allowable pressure 10 bar
– Minimum flow rate Approximately 3 litres per minute
– Pressure loss 1.2 bar at 150 litres per minute
– Liquid temperature range 5°C to 35°C
– Ambient temperature range 5°C to 45°C
– Hydraulic connection 1″ male
– Protection rating IP65
– Installation orientation Vertical or horizontal
– Pressure display Digital LED scale
– Integrated valve Inspectable non-return valve
