Pedrollo PV Pumps with Peripheral Impeller

Description

Pedrollo PV Pumps with Peripheral Impeller

INSTALLATION & USE

The Pedrollo PV pump is mainly used in commercial and industrial applications due to its ability to handle smaller pipework and low flow with very minimal power consumption and noisier running. The use of brass in this reliable compact pump reduces the risk of seizure due to rust and oxidation.

The PV Pump is designed to suit a wide range of applications, with features including:

– High heads achieved from low motor powers
– Small variations in delivery rates in the event of changes in the pressure demand
– High tolerance to entrained air in the pumped liquid

Suitable for use with clean water that does not contain abrasive particles and with liquids that are not chemically aggressive towards the materials from which the pump is made. The design features of these particularly compact brass pumps provide a guarantee against rust and oxidation; they are therefore recommended for industrial applications such as cooling and air conditioning.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

CONSTRUCTION

Pump Body: Brass
Pump Body Back-plate: Brass
Motor Bracket: Aluminium
Impeller: Brass
Motor Shaft: Stainless Steel
Mechanical Seal: Ceramic / Graphite / EPDM
Power Supply: 230V Single Phase (230/1/50) or 400V Three Phase (400/3/50)
Ports:  PV55 – 1/4″

PERFORMANCE RANGE

Flow rate up to 45 l/min (2.7 m³/h)
Head up to 105m

APPLICATION LIMITS

– Manometric suction lift up to 9 m (HS)
– Liquid temperature between -10 °C and 90 °C
– Ambient temperature between -10 °C 50 °C
– Max. working pressure: 10 bar
– Continuous service S1



Additional information

Weight	4.5 kg
Dimensions	Length: 188 mm Width: 118 mm Height: 145 mm
Model	PV55, PV60, PV65, PV70, PV81, PV90
Motor Type	Single Phase, Three Phase

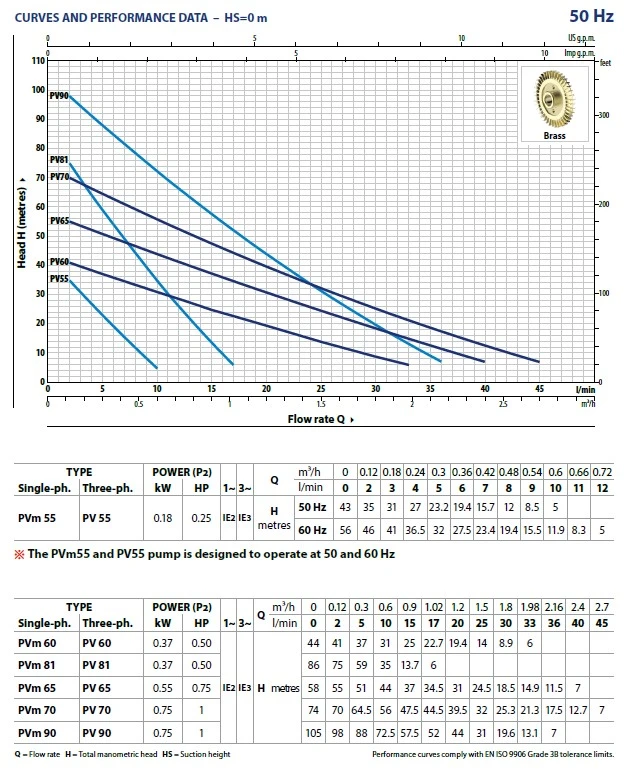

Performance Data

Downloads

PV Datasheet
