SAMOA UP30 3″ Pneumatic AODD Pumps – BSP Central Threaded – 1000LPM

Description

SAMOA UP20 3″ Pneumatic AODD Pumps – BSP Central Threaded – 1000 LPM

INSTALLATION & USE

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids.

SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.

UP30 pumps make the difference through:
HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption.
INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragms life.
MAXIMUM VERSATILITY. Aluminium and Stainless Steel pumps with a wide range of diaphragms, seats and balls options offer broad fluid and application compatibility. Highly suitable for outdoors and general applications with presence of abrasives
EASY SERVICING. Simplified maintenance and cleaning. Components designed for long life and reliability.

PERFORMANCE RANGE

Maximum free flow delivery: 1000 litres/min (264 gal/min)
Air pressure operating range: 1,5-8 bar (20-120 psi)
Solids in suspension maximum size: 12,7 mm (0,5″)
Maximum dry suction head: 6 m (20 ft)
Maximum wet suction head: 8 m (26 ft)
Delivery per cycle: 10 l (2.6 gal)

CONSTRUCTION

Inlet/Outlet: 3″ BSP (F)
Air inlet: 3/4″ NPSM (F)
Air exhaust port: 1 1/2″ NPT (F)
Sound level: 83 dB
Fluid ports Location: 3″ BSP central threaded
Certification: ATEX

This model is a fully groundable ATEX certified pump, for use in potentially explosive atmospheres (Ex II2 GD IIB/IIC 95 ˚C)







Additional information

Weight	64 kg
Dimensions	Length: 465 mm Width: 355 mm Height: 672 mm

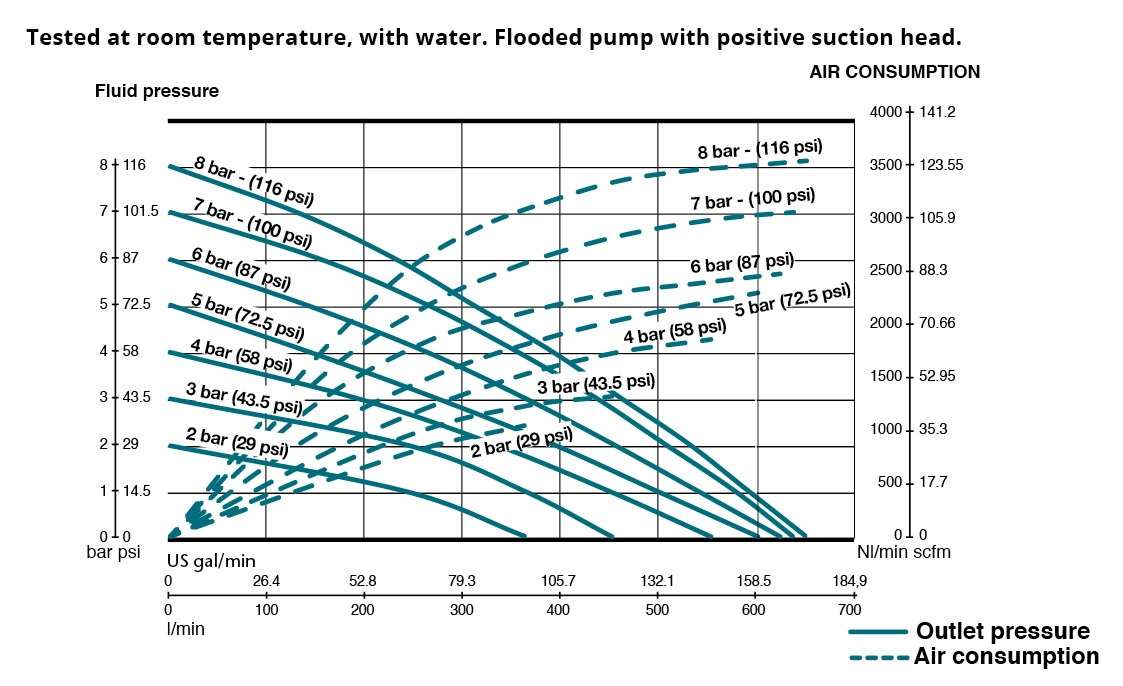

Performance Data

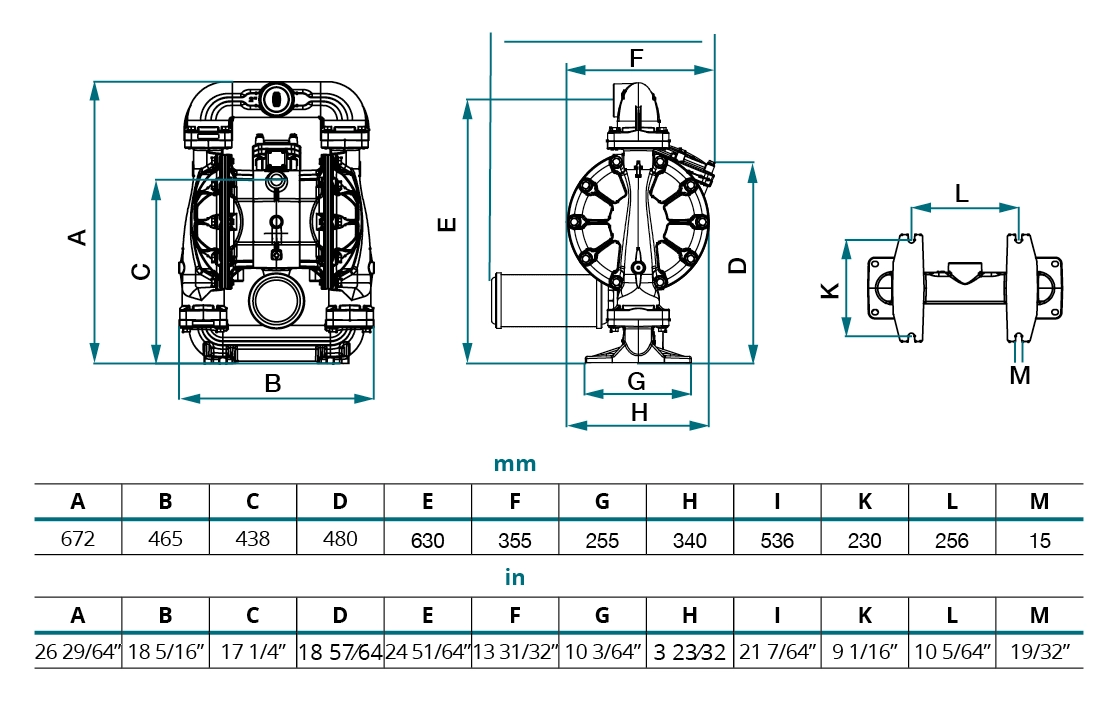

Dimensions
