Pedrollo CP Centrifugal High Flow Pumps

Description

Pedrollo CP Centrifugal Pumps – High Flow

INSTALLATION & USE

Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components.
Reliable and easy to operate, these pumps are widely used in civil, agricultural, and industrial settings for water supply,
air conditioning and cooling systems, and irrigation purposes.

Equipped with cutting-edge electric motors, the threephase pumps are designed to work with inverters, offering
stable and noiseless performance. They feature efficiency class IE3 for three-phase motors and IE2 for single-phase motors,
bolstered by class F insulation and IPX4 protection for models CP160 and CP210, and IPX5 protection for models CP220, CP230, and CP250.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

CONSTRUCTION

Pump body : Cast iron with ISO 228/1 threaded ports
Cover : Cast Iron
Impeller : Stainless steel for CP160, Brass for CP 210, CP 220, CP 230 Cast iron for CP 250
Motor shaft :Stainless steel AISI 431
Power Supply:
CPm: single-phase 230 V – 50 Hz.
CP: three-phase 230/400 V – 50 Hz up to 4 kW.
400/690 V – 50 Hz from 5.5 to 11 kW.

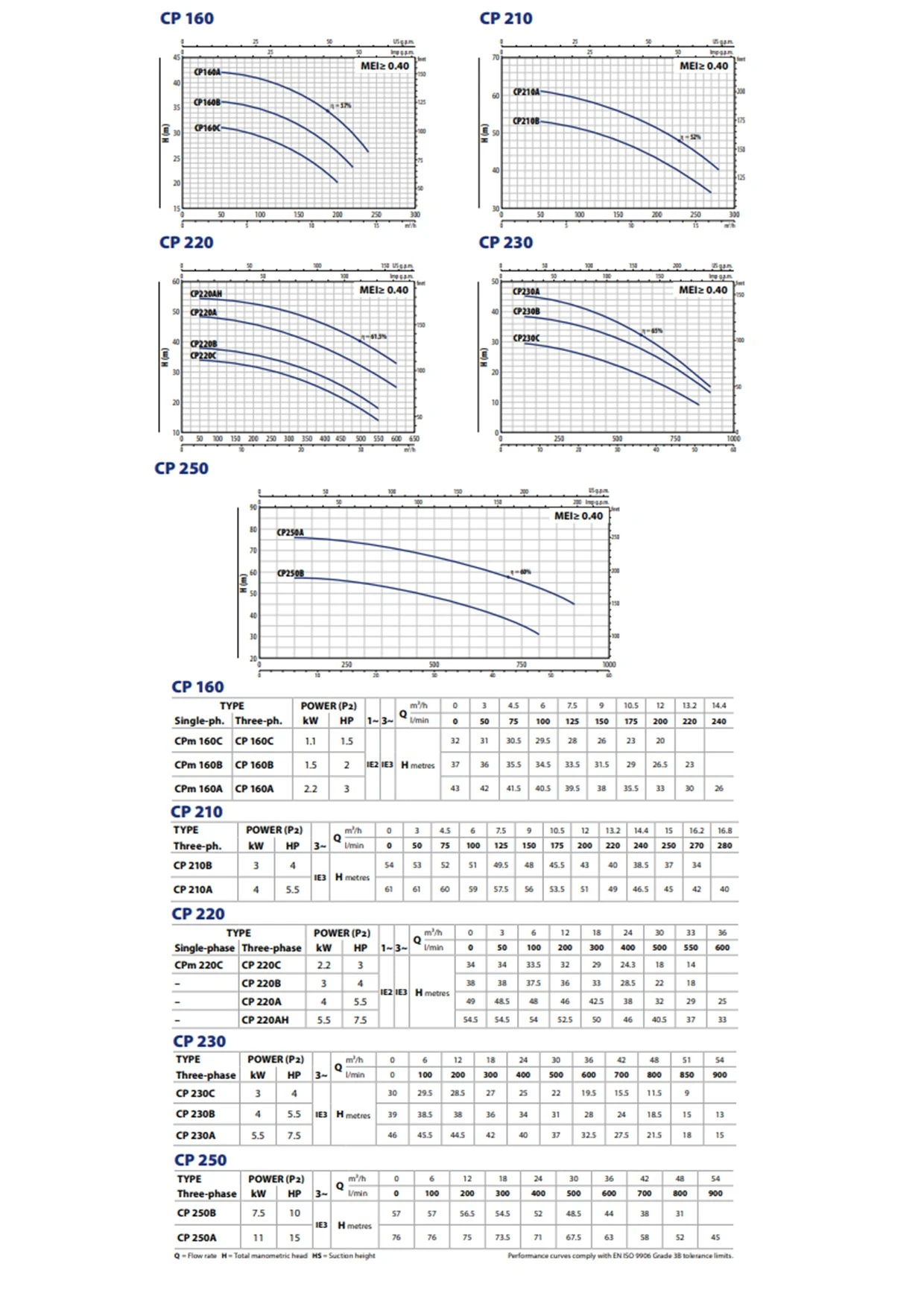

PERFORMANCE RANGE

Flow rate up to 900 l/min (54 m³/h)
Head up to 76m

APPLICATION LIMITS

– Manometric suction lift up to 7m
– Liquid temperature between -10°C and 90°C
– Ambient temperature between -10°C and 40°C
– Max. working pressure 10 bar
– Continuous service S1
