Pedrollo CP Centrifugal Medium Flow Pumps

Description

Pedrollo CP Centrifugal Pumps – Medium Flow

INSTALLATION & USE

Pedrollo CP Centrifugal Pumps are designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components.
Reliable and easy to operate, these pumps have extensive application in domestic and civil settings, particularly for
distributing water with small to medium-sized pressure tanks, transferring fluids, and watering orchards and gardens.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

CONSTRUCTION

Pump body : Cast iron with cataphoresis treatment with ISO 228/1 threaded ports
Cover : AISI 304 stainless steel (cast iron for models CP 170-170M-190-200)
Impeller : Stainless steel AISI 304
Motor shaft : Stainless steel AISI 431
Power Supply : CPm: single-phase 230 V – 50 Hz with winding integrated thermal motor protection.
CP: three-phase 230/400 V – 50 Hz

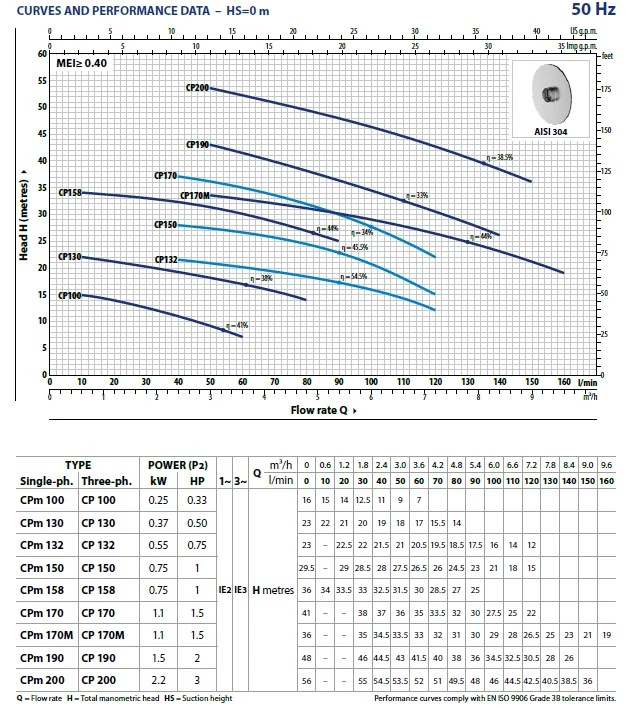

PERFORMANCE RANGE

Flow rate up to 160 l/min (9.6 m³/h)
Head up to 56m

APPLICATION LIMITS

– Manometric suction lift up to 7m
– Liquid Temperature Between -10°C and 90°C
– Ambient Temperature up to 40°C
– Max. Working Pressure: 6 bar for CP100-158, 10 bar for CP170-200
– Continuous service S1
