Pedrollo PQ81-PPS Peripheral Pump with PPS Body
Pedrollo PQ-PPS (Plastic Body) Pumps with Peripheral Impeller. Suitable for use with clean water, ideal for domestic and industrial applications.
PERFORMANCE RANGE
Flow rate up to 22 l/min (1.32 m³/h)
Head up to 90m
Next Working Day Delivery (UK Mainland Only)
Price Match Promise | Find Out More
- Description
- Product Data
- Performance Data
- Downloads
- Reviews (0)
Description
Pedrollo PQ81-PPS Pumps – Side Suction
INSTALLATION & USE
Designed to transfer clean water free from abrasive particles and liquids that will not damage the
pump’s components. Its hydraulic characteristics and compactness make it suitable for industrial applications.
We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.
PUMP BODY
The material used for the pump body is a PPS based technopolymer reinforced with glass fibre,
which gives it excellent mechanical properties.
CONSTRUCTION
Pump Body: PPS, with ISO 228/1 threaded brass inserted in ports
Motor Bracket: Aluminium with brass cover with anti-lock front shim function (patented)
Impeller: Brass, radial peripheral vane type
Motor Shaft: Stainless Steel AISI 431
Mechanical Seal: Silicon carbide / Graphite / NBR
PERFORMANCE RANGE
Flow rate up to 22 l/min (1.32 m³/h)
Head up to 90m
APPLICATION LIMITS
– Manometric Suction Lift up to 8m
– Liquid Temperature Between -10°C and 90°C
– Ambient Temperature Between -10°C 40°C
– Max. Working Pressure: 10 bar
Additional information
| Weight | 6.9 kg |
|---|---|
| Dimensions | Length: 218 mm Width: 120 mm Height: 152 mm |
| Motor Type | Single Phase, Three Phase |

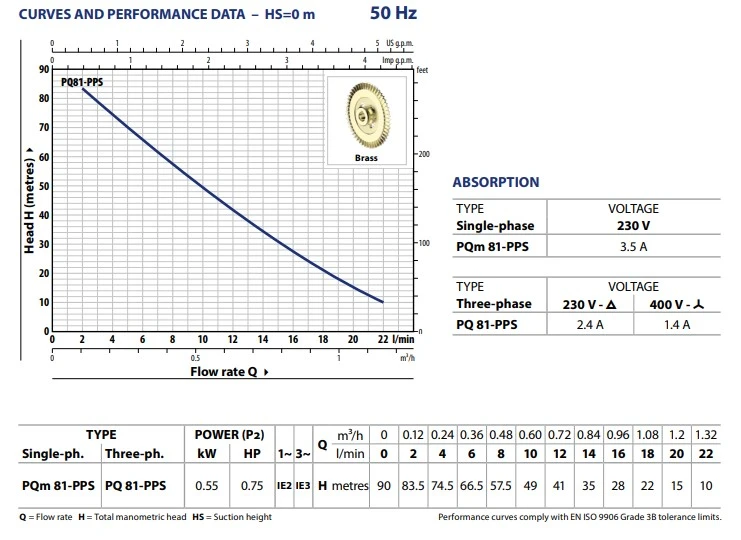

Performance Data
Downloads
Be the first to review “Pedrollo PQ81-PPS Peripheral Pump with PPS Body”
You must be logged in to post a review.
Reviews
There are no reviews yet.
