Powertank INDUSTRIAL – Triple Pump Variable Speed Water Pressure Booster

3YearWarranty Made-in-Britain

Increases Pressure & Flow – WRAS-approved GRP Tank

Output approx 240 l/min @ 3 Bar  Tank Sizes: 2000L – 5000ltr


Manufacturer: Powertank

1-3 Working Day Delivery - Pallet (UK Mainland Only)

  Price Match Promise | Find Out More


Powertank INDUSTRIAL – Triple Pump Variable Speed Water Pressure Booster – 2000ltr, 2500ltr, 3000ltr, 4000ltr & 5000ltr

The Powertank Industrial range is designed to deliver water to commercial and industrial properties where existing supply fails to meet demand.
The tank is WRAS approved and manufactured with insulating Grp materials and has a removable lid making it ideal for plant rooms. Fitted as standard with a variable speed controller and AG air gap. These tanks are fitted out individually in-house and are fully customisable.

Please note there is a lead time of approximately 3-4 weeks on Industrial Powertanks

Key Features:

– WRAS-approved GRP Tank
– Fully encapsulated insulation to sides and lid
– Close-fitting and removable lid
– Screened vent and screened overflow unit
– Low-level indicator
– AG Air GAP Standard (AB Air GAP Optional)
– Suitable for Fluid Category 3 (CAT5 Optional)

System Connections:

Inlet: ¾”” BSP
Outlet:  2″ Dual
Overflow: 1 1/4” BSP
Drain Off: ¾” BSP

If there are any special Inlet or Overflow requirements please let us know prior to placing an order.

Technical Info:

Power Supply: 240V, 50Hz
Controller: Steadypres M/T 07 supplied with 8ltr pressure vessel
Mains Power Cable: 2 mtr x 1mm2 3 core fitted with 13 amp fuse main plug
Current Input: 6.3 amp

The Triple Pump Industrial Powertank will produce

240 litres per min @ 3 Bar

NOTE: A minimum of 0.5 bar incoming pressure is required for our Standard Fill Valve

Tank Sizes

Dimensions for tank only

Model Length Width Height
2000ltr Industrial 2205mm 1205mm 1095mm
2500ltr Industrial 2205mm 1205mm 1345mm
3000ltr Industrial 2205mm 1205mm 1595mm
4000ltr Industrial 2195mm 2195mm 1095mm
5000ltr Industrial 2695mm 2195mm 1095mm

Additional Options

Split Tank Options – For applications where access is restricted (Optional)


CAT5 AB Air Gap – Raised float valve housing option provides an AB air gap for Fluid Category 5 (Optional Upgrade)




Additional information

Weight 52 kg
Dimensions Length: 1235 mm Width: 785 mm Height: 1040 mm

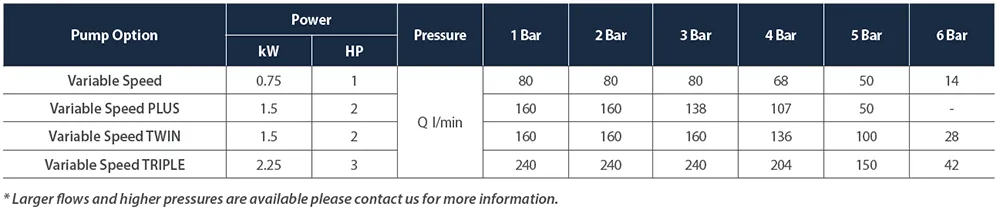

Performance Data


Additional Information

Why do I need a tank and a pump?
To increase water pressure and flow, there must first be a supply of water to pump from. If you are not getting enough from your mains then you need a break tank to store your water supply ready for when you need it. This water can then be pumped to your outlets on demand giving you plentiful water pressure and supply. Take control of your own water!

Why can’t I just fit the pump on the mains?
Water Authority byelaws prevent a pump being directly connected to the mains supply so when your mains water pressure needs a boost, a break tank must be incorporated into the system. There is a regulation that says you can pump up to 12l/min off the mains which was originally brought in because of pressure washers, but 12 l/min is just about enough to run 1 shower without water being used elsewhere and would only suggest these for single occupancy properties.

Will it be noisy?
Incorporating an ultra-quiet running submersible pump within a tank of water is about as quiet as you can get, gone are the days of feeling like your house is going to take off every time you turn a tap on! The Variable speed version is quieter still as the pump is not running full throttle unless demand is very high.

Is it easy to install?
Our all-in-one tank and pump unit is designed to remove the headache for your plumber, just fit it and forget it. We check every unit here before it leaves us to ensure that it is in perfect working order when it gets to you. Our simple installation guide makes it very easy for a qualified plumber to fit.

Where am I going to put it?
Unfortunately there is no small way to store a tank full of water, but this version is designed for properties where floor space is at a premium. The ideal place to put this system is as close to the mains stop tap as possible, and on the same level is preferable. It can be installed in a loft if there are no other options, but you might then want to think about a bigger tank as the refill rate will be slower and it will need to be supported on strong beams. This system can also be stored outside but will need to be in a sheltered environment (i.e. an insulated shed) with absolutely no risk of frost.

It seems very expensive, why should I buy your version?
Our Powertank Rectangular is made from high quality components and materials giving long lasting and reliable use. Guaranteed to boost your water pressure you can fit it and forget it, enjoying reaping the benefits of finally having the water supply you require and more. Easy to install this provides a compact low cost solution to water pressure problems.

Quick Installation Checklist

Quick Check List for Installing Your Powertank

  • Powertank should be mounted on a solid foundation. The recommended surface for a Powertank is a concrete plinth or floor. We do not recommend installation of Powertanks on wooden structures where noise or vibration may be an issue.
  • Fill the Powertank with water through the fill valve “before” connecting the top discharge pipe work to allow air to escape from the pump.
  • Pipe work should be easy to disassemble. Consider the use of “Speedfit” or similar plastic pipework systems, or flexible hosing with a suitable pressure rating, for the last 1.0 mtr (approx.) of pipe work connecting to the unit. This will assist in reducing noise transmission, and avoid stressing the Powertank connections.

Delivery and Handling

The weight and size of the Powertank range may require the aid of lifting equipment and must be handled in a safe manner.

For full instructions, to be read before installation, please see Powertank Installation Guide>
