Pedrollo PQ Pumps with Peripheral Impeller – Side Suction

Description

Pedrollo PQ Pumps with Peripheral Impeller – Side Suction

INSTALLATION & USE

Peripheral pump with radial suction.
Designed to transfer clean water free from abrasive particles and liquids that will not damage the pump’s components. Its compact design and efficient hydraulic performance make it ideal for domestic applications.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

COMMON APPLICATIONS

For use in water supply systems, air conditioning systems, washing systems, pressure systems, cooling systems, ironing systems, and as irrigation pumps.

CONSTRUCTION

Pump Body: Cast iron with ISO 228/1 threaded ports
For PQ 61: cast iron with anti-locking treatment with ISO 228/1 threaded ports
Motor Bracket: Aluminum with brass cover and front scraping anti-locking function (patented)
Impeller: Brass, radial peripheral vane type
Motor Shaft: Stainless steel AISI 431 (EN 10088-3 – 1.4104 for PQ 60, PQ 61, PQ 65)
Mechanical Seal:
PQ 60-61-65-80 AR-12 Ø 12 mm      Ceramic             / Graphite / NBR
PQ 90 ST1-12 Ø 12 mm                        Silicon carbide / Graphite / NBR
PQ 100-200-300 FN-14 Ø 14 mm    Graphite            / Ceramic  / NBR

Power Supply:
PQm: single-phase 230 V – 50 Hz with winding integrated thermal motor protection.
PQ: three-phase 230/400 V – 50 Hz
Inlet & outlet:
PQ60, PQ65 , PQ80, PQ100, PQ200, PQ300: 1″
PQ90: 3/4″
PQ81: 1/2″

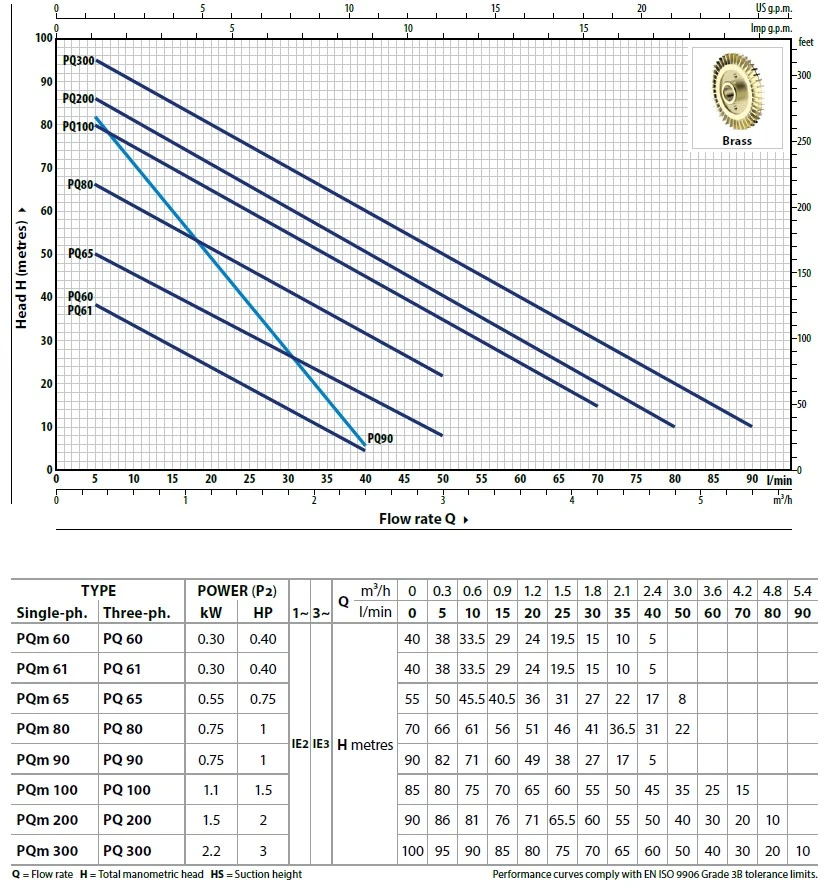

PERFORMANCE RANGE

Flow rate up to 90 l/min (5.4 m³/h)
Head up to 100m

APPLICATION LIMITS

• Manometric suction head up to 8 m
• Liquid temperature between -10 °C and +60 °C
• Ambient temperature up to +40 °C
(+50 °C for PQ 60 and PQ61)
• Maximum working pressure:
– 6 bar for PQ 60, PQ 61, PQ 65
– 7 bar for PQ 80
– 10 bar for PQ 90, PQ 100, PQ 200, PQ 300
