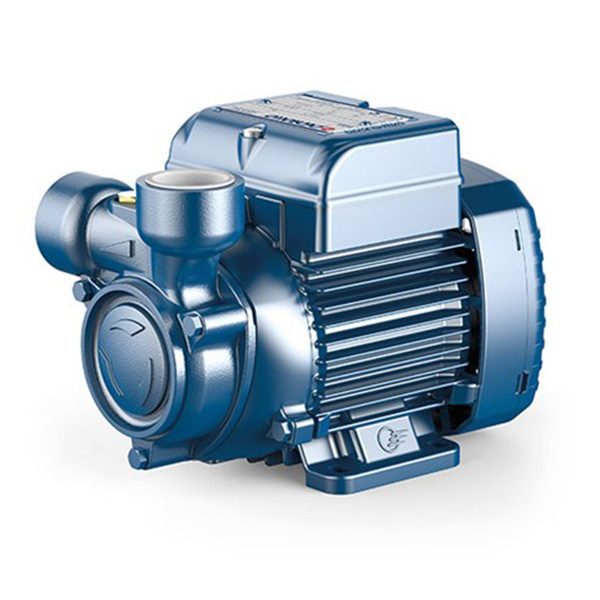

Pedrollo PQ Pumps with Peripheral Impeller – Side Suction 110v

Description

Pedrollo PQ Pumps with Peripheral Impeller – Side Suction 110v

INSTALLATION & USE

The Pedrollo PQ Pumps with Peripheral Impeller are designed to suit a wide range of applications, with features including:

– High heads achieved from low motor powers
– Small variations in delivery rates in the event of changes in the pressure demand
– High tolerance to entrained air in the pumped liquid

Suitable for use with clean water that does not contain abrasive particles and with liquids that are not chemically aggressive towards the materials from which the pump is made. The hydraulic characteristics of these pumps, coupled with their compactness, makes them suitable for use in both domestic and industrial applications.

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

COMMON APPLICATIONS

For use in water supply systems, air conditioning systems, washing systems, pressure systems, cooling systems, ironing system, and as irrigation pumps.

110V Note – Please ensure that your power supply cable is large enough and as short as possible to ensure significant voltage reaches the motor.

CONSTRUCTION

Pump Body: Cast iron with ISO 228/1 threaded ports
Motor Bracket: Aluminum with brass cover and front scraping anti-locking function (patented)
Impeller: Brass, radial peripheral vane type
Motor Shaft: Stainless steel AISI 431
Mechanical Seal: Ceramic / Graphite / NBR
Power: 110v
Inlet & outlet: 1″

PERFORMANCE RANGE

Flow rate up to 40 l/min (2.4 m³/h)
Head up to 40m

APPLICATION LIMITS

– Manometric Suction Lift up to 8m
– Liquid Temperature Between -10°C and 90°C
– Ambient Temperature Between -10°C  – 45 °C
– Max. Working Pressure:  6 bar for  PQ 60
