Pedrollo PRO-NGA Stainless Steel Centrifugal Pumps with Open Impeller

Description

Pedrollo PRO-NGA Stainless Steel Centrifugal Pumps with Open Impeller

INSTALLATION & USE

The Pedrollo NGA-PRO Centrifugal Pumps are suitable for use with liquids that are not chemically aggressive towards the materials from which the pump is made. The open impeller design allows liquids containing relatively high levels of impurities to be pumped without the risk of the impeller clogging. All of the components in contact with the pumped liquid are constructed in stainless steel AISI 316. Because of this characteristic the NGA-PRO series of pumps are particularly suitable for use in plants for washing fruit, vegetables, fish and shellfish, in industrial washing plants and for the circulation of cooling liquids

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

CONSTRUCTION

Models: Pedrollo NGA1B-PRO | NGA1A-PRO
Pump Body: Stainless Steel AISI 316, complete with threaded ports in compliance with ISO 228/1
Body Back Plate: Stainless Steel AISI 316
Impeller: Open Impeller in Stainless Steel 316
Motor Shaft: Stainless steel AISI 316
Power Supply: 230V Single Phase (230/1/50) or 400V Three Phase (400/3/50)
Ports – Inlet & Outlet: 1’1/2″ BSP Female

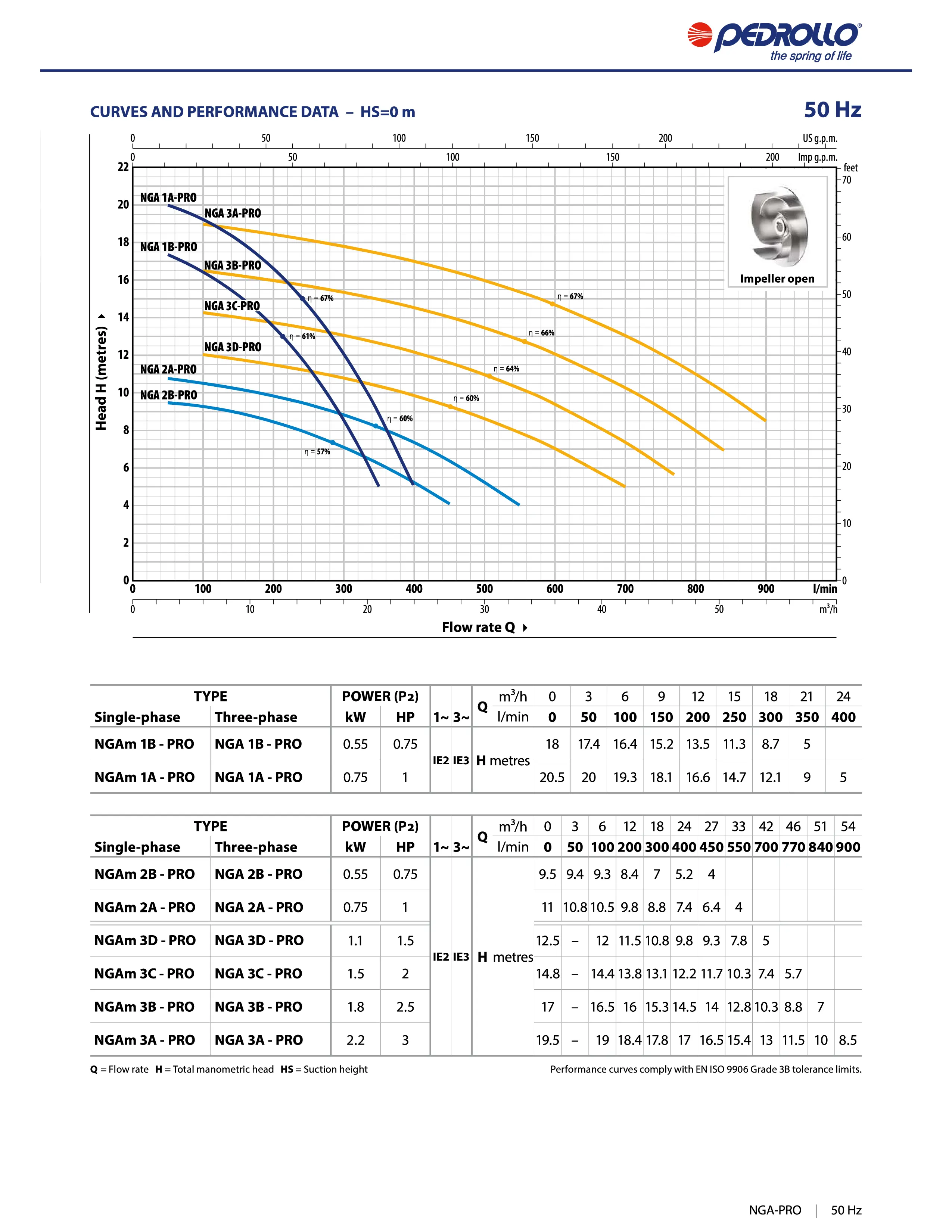

PERFORMANCE RANGE

Flow rate up to  350l/min (21 m³/h)
Head up to 20m

APPLICATION LIMITS

– Manometric suction lift up to 7m
– Liquid temperatures between -10°C and 90°C
– Ambient temperature between -10°C and 40°C
– Max working pressure 6 bar
– Passage of suspended solids up to Ø 10 mm
