SAMOA UP03B 3/8″ Pneumatic AODD Pumps – Non-Metallic – BSP Side Ports – 31 LPM

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids. Non-Metallic

PERFORMANCE RANGE
Maximum free flow delivery: 31 litres/min
Fluid ports Location: 3/8″ BSP Side Ports

Manufacturer: SAMOA

All Diaphragm Type & Material options available, please contact us

Clear

2-5 Working Day Delivery (UK Mainland Only)

  Price Match Promise | Find Out More

Description

SAMOA UP03B 3/8″ Pneumatic AODD Pumps- Non-Metallic – 31 LPM

INSTALLATION & USE

Air operated double diaphragm pumps for dosing, spraying, transferring, evacuating and distributing a wide variety of fluids.

SAMOA offers a wide range of material options for chemical compatibility and to withstand abrasion, temperature and fatigue caused by demanding conditions.

UP03 pumps make the difference through:
HIGHER EFFICIENCY. Maximum fluid flow with reduced air consumption.
INCREASED RELIABILITY. No stall, no icing, reliable start-up and longer air valve and diaphragms life.
MAXIMUM VERSATILITY. Aluminium and Stainless Steel pumps with a wide range of diaphragms, seats and balls options offer broad fluid and application compatibility. Highly suitable for outdoors and general applications with presence of abrasives
EASY SERVICING. Simplified maintenance and cleaning. The pump is held together by carriage bolts and nuts allowing to accomplish a much faster tear down and rebuild. · COMPACT DESING. Ready to meet any OEM application needs.
CONNECTIVITY. Can be configured to connect a Smart Pump-Controller System to actuate, control and monitor your pumps.

PERFORMANCE RANGE

Maximum free flow delivery: 31 litres/min (8,2 gal/min)
Air pressure operating range: 1,5-7 bar (20-100 psi)
Solids in suspension maximum size: 1,6 mm (0,06 “)
Maximum dry suction head: 3 m (10 ft)
Maximum wet suction head: 7 m (23 ft)
Delivery per cycle: 0,08 l (0,02 gal)

CONSTRUCTION

Inlet/Outlet: 3/8″ BSP (F)
Air inlet: 1/4″ NPSM (F)
Air exhaust port: 1/2″ NPT (F)
Fluid ports Location: 3/8″ BSP Side Ports
Sound level: 75 dB
Certification:
UP03B-BPS-PTA – CE, UKCA
UP03B-BPS-PTZ – CE, UKCA
UP03B-BBS-PTZ – CE ATEX, UKCA, EAC
UP03B-BDS-CCZ – CE ATEX, UKCA, EAC
UP03B-BWS-TTZ – CE, UKCA











Additional information

Weight 5 kg
Dimensions Length: 202 mm Width: 151 mm Height: 237 mm

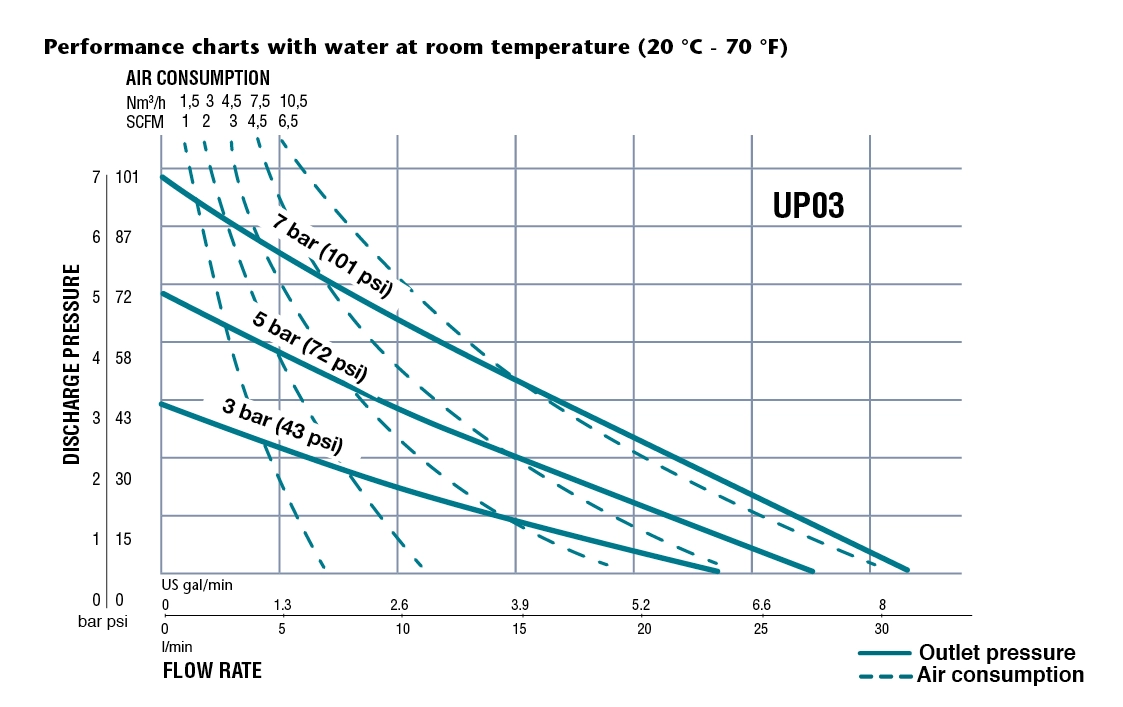

Performance Data

SAMOA-UP03p-curve

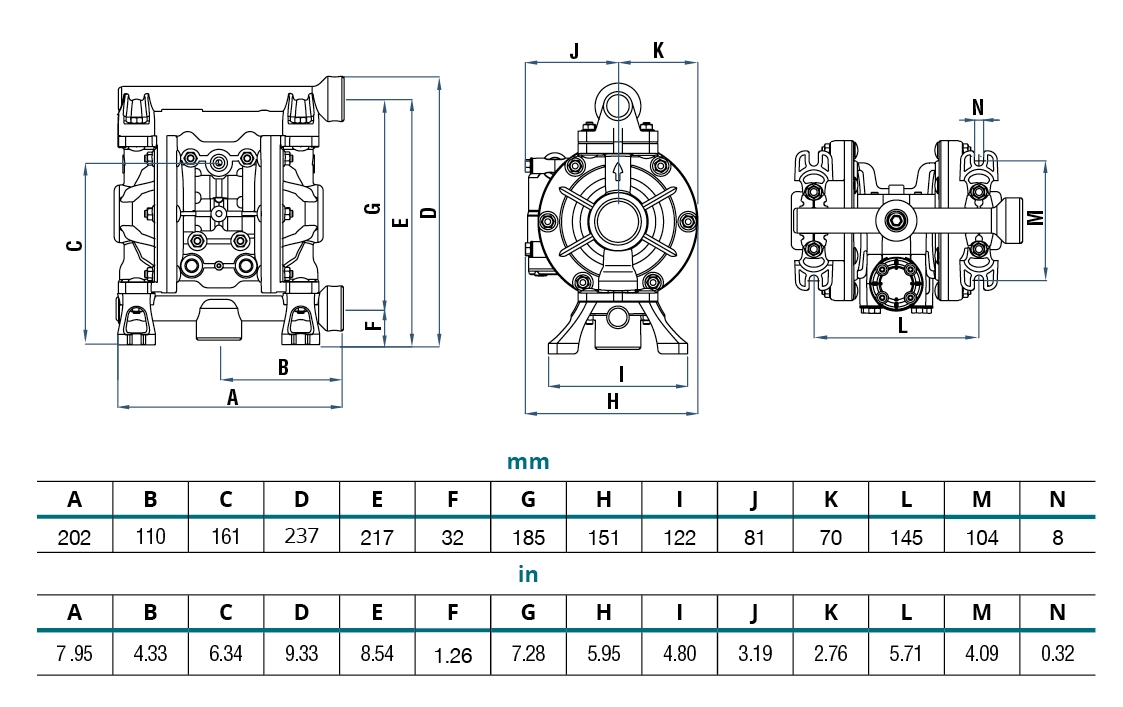

Dimensions

SAMOA-UP03prl-Dimensions
