Vertical Multistage Pumps
Vertical Multistage Pumps
We offer a range of high quality vertical multistage pumps suitable for Domestic, Civil and Industrial sectors.
The DPV series is suitable for use in many applications including;
- Domestic water supply
- Utility
- Cooling water transport
- Hot water applications
- Fire fighting
- Food, chemical and process industry
- Irrigation
We have access to the full range of DP Vertical Multistage Pumps and can provide equivalent replacement pumps to most leading brands. Our technical team are available to advise on correct pump selection for new application or for replacing a pump failure.
DPV Models
DPV 2 Range
Capacity
Capacity range [m3/h] 0.2 – 3.3
Pressure
Norm pressure PN16-25-40
Maximum pump pressure [m] 229
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 4 Range
Capacity
Capacity range [m3/h] 0.4 – 6.5
Pressure
Norm pressure PN16-25-40
Maximum pump pressure [m] 234
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 2-6 Oval Flanges
DPV 6 Range
Capacity
Capacity range [m3/h] 0.6 – 9.0
Pressure
Norm pressure PN16-25-40
Maximum pump pressure [m] 256
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 10 Range
Capacity
Capacity range [m3/h] 1.0 – 13.2
Pressure
Norm pressure PN16-25-40
Maximum pump pressure [m] 239
Hydraulic assembly
Temperature range medium -20 up to +140° C

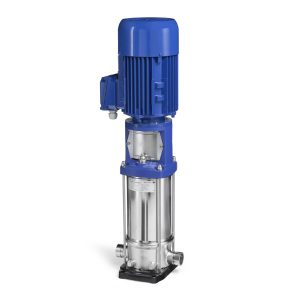

DPVV-6-10 Victaulic Flanges
DPV 15 Range
Capacity
Capacity range [m3/h] 1.8 – 22.5
Pressure
Norm pressure PN16-25-40
Maximum pump pressure [m] 248
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 25 Range
Capacity
Capacity range [m3/h] 2.8 – 35
Pressure
Norm pressure PN25-40
Maximum pump pressure [m] 246
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPVCI-4-6
DPV 40 Range
Capacity
Capacity range [m3/h] 4.0 – 54
Pressure
Maximum pump pressure [m] 239
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 60 Range
Capacity
Capacity range [m3/h] 6.0 – 76
Pressure
Maximum pump pressure [m] 251
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPVF-85-6 Round Flanges
DPV 85 Range
Capacity
Capacity range [m3/h] 8.5-112.8
Pressure
Norm pressure PN25-40
Maximum pump pressure [m] 176
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV 125 Range
Capacity
Capacity range [m3/h] to 126
Pressure
Maximum pump pressure [m] 125
Hydraulic assembly
Temperature range medium -20 up to +140° C
DPV-125
DP-Select: Pump selection program
DP-select is the official DP-Pumps pump selection program that allows you to easily configure the right pump for your application. The tool also provides you with detailed information about the pump.
The pump can be selected in several ways:
- Using basic hydraulic data Q, H
- Selecting a replacement product via “Compare”
- Direct selection by means of pump type
Free download
The pump selection software is available as a free App:
And as a direct download for the PC with automatic, online update.
Contact Us
Our technical team are available to help with product selection and specification.
