Pedrollo FUTURE JET-ST 110v Stainless Steel Self-Priming JET Pumps

Description

Pedrollo FUTURE JET-ST 110v Stainless Steel Self-Priming JET Pumps

INSTALLATION & USE

The Pedrollo FUTURE JET-ST 110v Stainless Steel Self Priming pumps are designed to pump water even in cases where the air is present. Because of their reliability and the fact that they are easy to use, they are recommended for use in domestic applications such as the distribution of water in combination with small or medium-sized pressure tanks, for the irrigation of gardens and orchards, etc.

Common applications include;

Irrigating a garden or pressurising a house from a shallow well
Irrigating a garden or pressurising a house from a stream
Irrigating a garden or pressurising a house from an underground rainwater harvesting tank

We always recommend getting pumps installed by a qualified plumber.
The pump should be installed in an enclosed environment or sheltered from inclement weather.

Models Include:

Single Phase: FUTURE JETm 1C-ST 110v | FUTURE JETm 2C-ST 110v
110V Note – Please ensure that your power supply cable is large enough and as short as possible to ensure significant voltage reaches the motor.

Developed by innovative research and development team, this pump revolutionizes the classic self-priming design.
With an international registered patent, the FUTURE JET-ST not only matches the pressure of a traditional JET pump, it surpasses it. Moreover, it doubles the flow rate while reducing energy consumption by up to 50%

Reduction of energy consumption by up to 50% compared to other JET pumps
Stainless steel pump body and impeller
Better consumption/performance ratio

The FUTURE JET-ST is a replacement to the JCR range.

CONSTRUCTION

Pump housing: Stainless steel AISI 304
Impeller Stainless: steel AISI 304
Ejector unit: Noryl™
Shaft Stainless steel: AISI 431
Pump cover Stainless steel: AISI 304
Power Supply: 110v Single Phase (110/1/50)
Ports – Inlet & Outlet: 1″

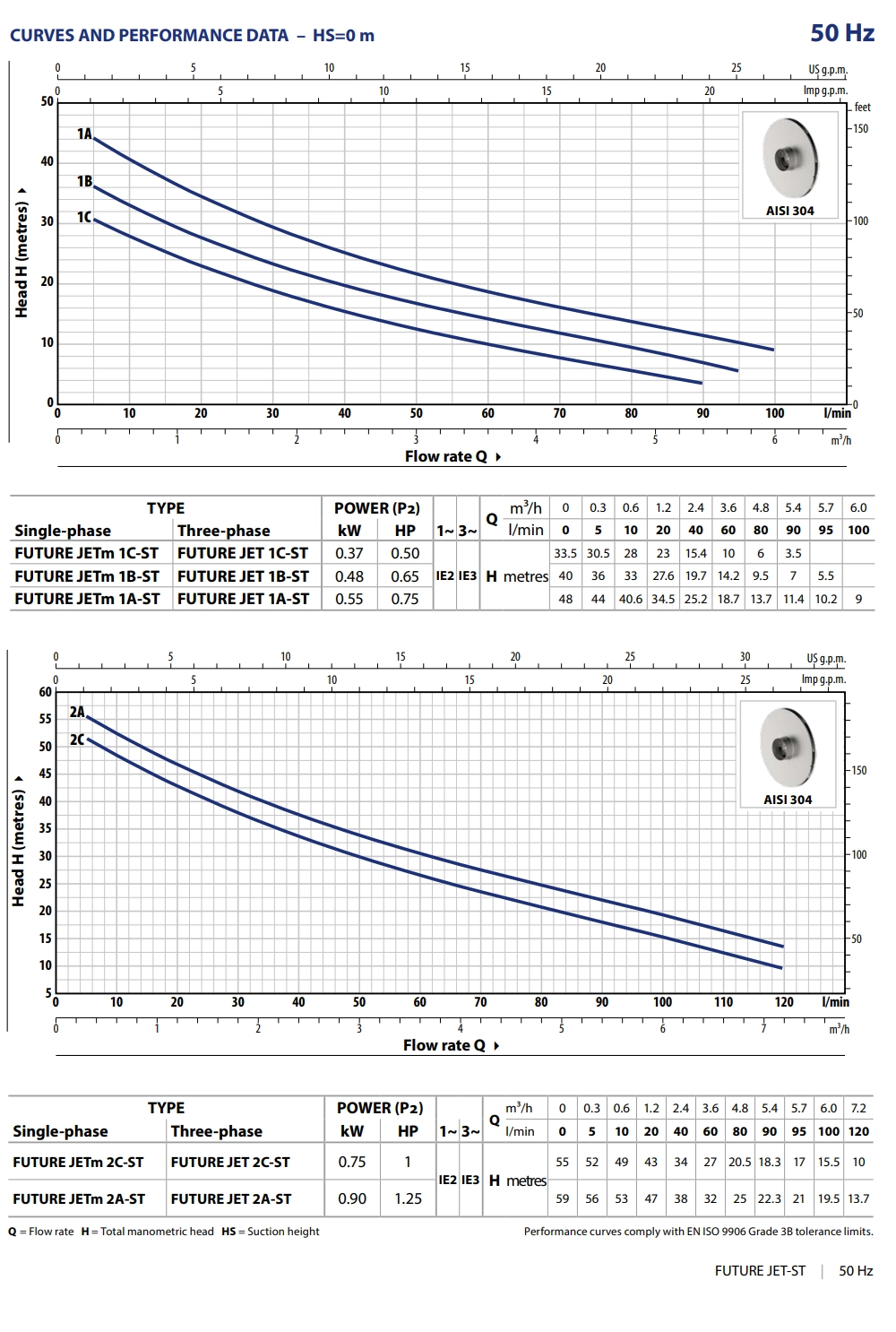

PERFORMANCE RANGE

Flow rate up to  120l/min (7.2 m³/h)
Head up to 59m

APPLICATION LIMITS

– Manometric suction lift up to 9m (HS)
– Liquid temperatures between -10°C and 40°C
– Ambient temperature up to 40°C
– Max working pressure: 6  bar
– Ingress protection rating: IP X4
