The Peak Plus- Multi Application Submersible Bundle

Product images are for illustration purposes only.

The Peak Plus- Multi Application Submersible Bundle

£370.80 inc. VAT

Multi Application Submersible Kit. For Well & Rain Water Recycling/Harvesting. For use in larger gardens.

PERFORMANCE RANGE
Nominal 3 Bar at 40 l/min

Add a fitted UK Plug?

Next Working Day Delivery (UK Mainland Only)

Description

The Peak Plus – Multi Application Submersible Kit

The Peak is the most versatile Bundle for well water recycling applications.

The Bundle has numerous uses in domestic and commercial applications where free water is harnessed for irrigation, vehicle washing, toilet flushing and much more.

For irrigation purposes when watering from a well this pump is designed for use in larger gardens.

With correct filtration and UV disinfection it can be used drinking purposes.

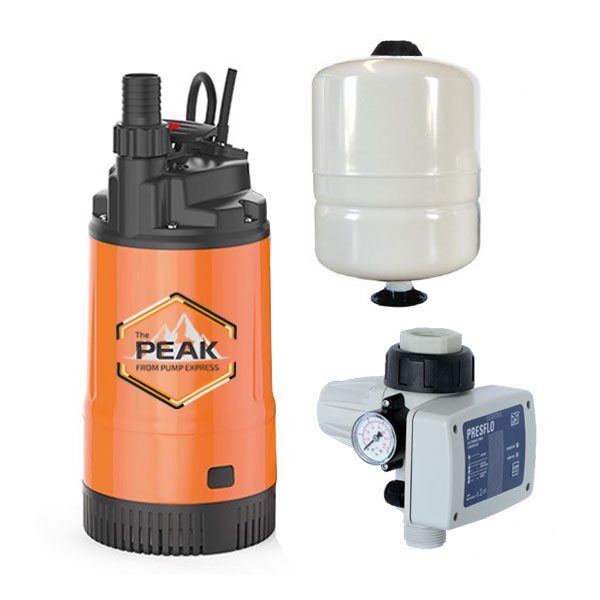

BUNDLE COMPONENTS

– Submersible multi-stage well pump – For domestic used supplying water from reservoirs tanks, or wells.
– Pressure sensing fixed speed pump controller – Automatically starts and stops the pump. Features Dry Run Protection & Auto Reset.
– 8ltr Pressure vessel – Used to store a small amount of water at pressure to stop the pump starting unnecessarily.
– Three-way brass connector fitting – with 1″ Gas Connections, to connect the pressure vessel in the system, before the first draw off.
– 1 1/4” Non-return valve – Used on the outlet of the pump to avoid cavitation (dry running) in the pump.

PERFORMANCE RANGE

Nominal 3 Bar at 40 l/min

TECHNICAL DETAILS:

Pump
10m long power cable
Threaded 1¼” Pipe Coupling
Single-phase 230 V – 50 Hz
Power: 0.55kW 3.4A

Controller
Max Pump Power: 1.5Kw / 2.0Hp
Start Pressure: 1.5 bar
Protections: Dry Run / Frequent Starts
Voltage: 230V 50Hz
Connections: 1″ BSP – MALE INLET – FEMALE OUTLET
Cut Off Flow Rate: 2 l/min

For a typical installation example, please click tab above.

Additional information

Weight 16 kg

Performance

PE-Peak-Performance-2018

Installation Guide

PEAK-Installation-Guide

Installation Examples

Water supply from a well

Fitting-Well-Pump
